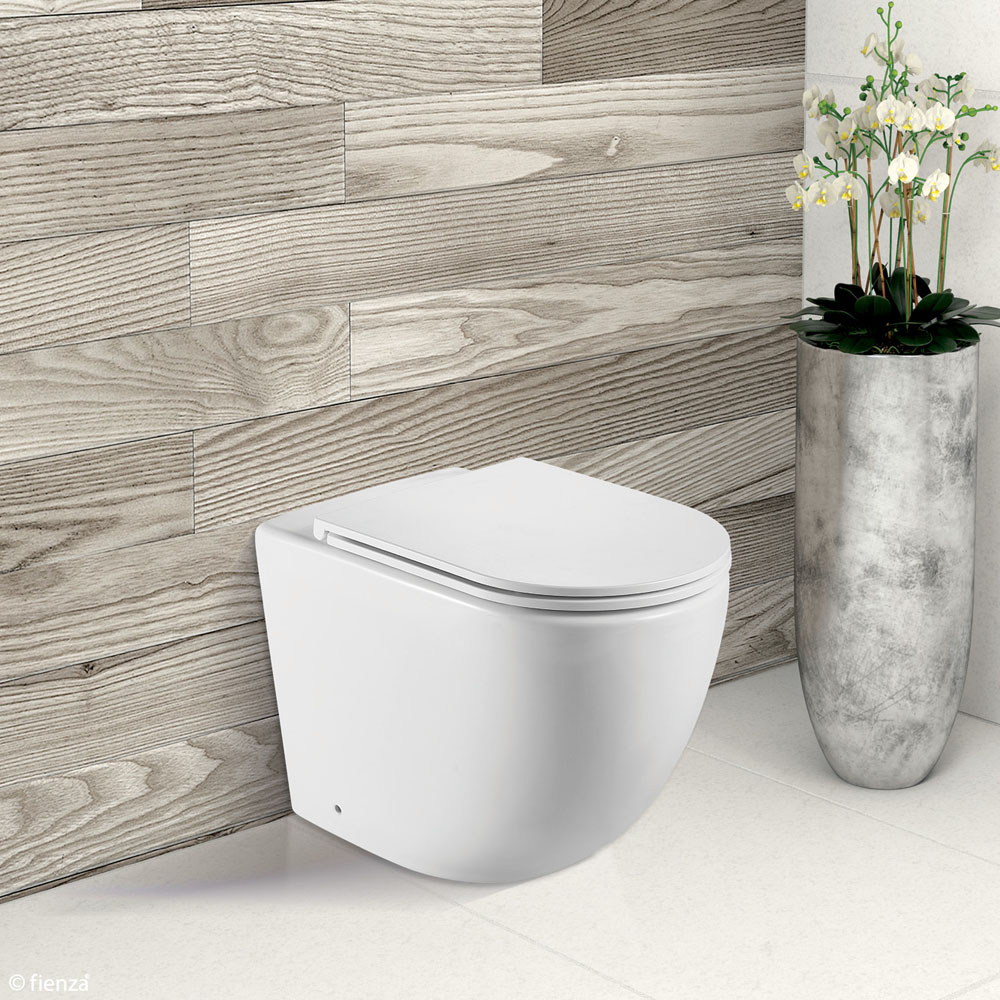

Koko Wall Faced Toilet Rimless Pan Matte White

Pan: Rimless

Trap(s): Universal (S or P Trap)

Set outs: S-trap set out 110mm - 140mm as standard. P-trap set out 185mm floor to centre of outlet.

Seat: Soft close quick release with metal hinges

Colours: Matte White

Installation: The installation of the toilet suite shall be in accordance with the normal minimum drain line grade requirements in AS/NZS 3500.2.

Materials: Vitreous china pan and cistern, compression moulded polymer seat

Weight: 32.88kg

Parts list: Round seat cover, hinge, decorative cover, S-trap connector, seal ring, fixing plate, fixing screw, floor fixing screw

Warranty: 10 years vitreous china cistern and pan replacement of product; 2 years valves, fittings and seat; 1 year seals and labour (refer to Service & Warranty page)

Maintenance and care instructions: Clean with a soft cloth and warm soapy water as necessary - rinse and dry after cleaning. Avoid using abrasive or acid-based cleaning products.

WELS: WELS 4 Star rated, 4.5L/3L (3.3L average flush) when used with R&T Cistern WELS Registration: L07266DOWNLOAD SPECIFICATION SHEETDOWNLOAD INSTALLATION GUIDE
